Product Details:
|
| Name: | Hot Dip Galvanized Steel Pipe | Thickness: | 21.3-219mm |
|---|---|---|---|
| OD: | 2.8-6.8mm | Length: | 6M |
| Keyword: | Welded Steel Pipe | Technique: | Hot Dip Galvanized |
| Material: | Q235,1020,S235JR | Surface Treatment: | Annealing |
| Standard: | BS1387 | Grade: | Q235 |
| Section Shape: | Round | Alloy Or Not: | Non-alloy |
| High Light: | Welded schedule 40 hot dipped galvanized steel pipe,schedule 40 hot dipped galvanized steel pipe BS 1387 MS,219mm hot dip galvanized steel tube |
||
Size:
Outer Diameter: 21.3-219mm
Thickness: 2.8-6.8mm
Length:6m
Standard: BS1387

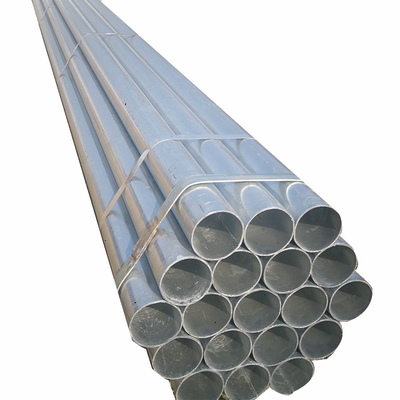

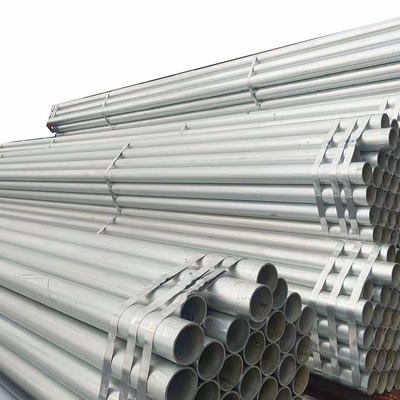

Hot Dip Galvanized Pipes are made by reacting the molten metal with the iron matrix to produce an alloy layer, so that the matrix and the coating are combined. Hot-dip galvanizing is to pickle the steel pipe first. In order to remove the iron oxide on the surface of the steel pipe, after pickling, it is cleaned in the tank of ammonium chloride or zinc chloride aqueous solution or mixed aqueous solution of ammonium chloride and zinc chloride, and then sent to the hot dip bath.
| Product Name | Hot Dip Galvanized Steel Pipe |
| Out Diameter |
Hot dipped galvanized:1/2''-24''(21.3mm-600mm). Such as 21.3mm, 33.4mm, 42.3mm, 48.3mm, 114.3mm or as customer request. |
| Thickness | Hot dipped galvanized: 0.8- 25mm. |
| Zinc Coating | Hot dipped galvanized:35μm-200μm |
| Type | Electronic Resistance Welded (ERW) |
| Steel Grade | Q235, Q345, S235JR, S275JR, STK400, STK500, S355JR, GR.B-D |
| Standard | BS1139-1775, EN1039, EN10219, JIS G3444:2004, GB/T3091-2001, BS1387-1985, DIN EN10025, ASTM A53 SCH40/80/STD, BS-EN10255-2004 |
| Surface Finish | Pre-galvanized, Hot dipped galvanized, Electro galvanized, Black, Painted, Threaded, Engraved, Socket. |
| International Standard | ISO 9000-2001, CE CERTIFICATE, BV CERTIFICATE |
| Packing |
1.Big OD:In bulk 2.Small OD:packed by steel strips 3.woven cloth with 7 slats 4.according to the requirements of customers |
| Main Market | Middle East,Africa, Asia and some European country and South America, Australia |
| Country of origin | China |
| Productivity | 5000Tons per month. |
| Remark |
1. Payment terms : T/T ,L/C 2. Terms of trade : FOB ,CFR,CIF ,DDP,EXW 3. Minimum order : 2 tons 4. Delivery time : Within 25 day. |
Product Features
1. The surface of the steel pipe is treated with anti-embroidery, which is more durable, not more than too fast oxidation, and will not form white rust on the steel pipe;
2. Fully protect the steel pipe. After heating, every part of the steel pipe is plated with zinc, and the concave and convex parts are protected;
3. It has the characteristics of anti-corrosion and wear resistance, which makes the steel pipe last longer;
4. save the time of oiling or painting, and the construction is more convenient
Application
Production Process
The Process flow is: Black tube - Alkali washing - Water Washing - Pickling - Water rinsing - Dipping aid - Drying - Hot Dip Galvanizing - External Blowing - Internal blowing - Air cooling - Water cooling - - Passivation - Water rinsing - Inspection - Weighing - Storage.
Our Company
Hot Dip Galvanized Steel Pipe are widely used in construction, machinery, coal mines, chemicals, electric power, railway vehicles, automobile industry, highways, bridges, containers, sports facilities, agricultural machinery, petroleum machinery, prospecting machinery, greenhouse construction and other manufacturing industries.
