Product Details:
|
| Name: | Cold Rolled Precision Steel Pipe | Thickness: | 2-10mm |
|---|---|---|---|
| OD: | 16-219mm | Surface: | Bright |
| Payment: | T/T,LC | Length: | Fixed And Random Length |
| Tolerance: | ±1%,±5%,±10% | Keyword: | Precision Steel Pipe |
| Technology: | Cold Rolled | Standard: | DIN2391 |
| High Light: | Precision asme seamless pipe,asme seamless pipe Carbon Steel,Cold Rolled cold rolled pipes |
||

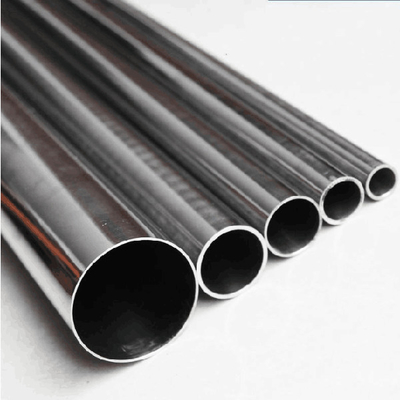

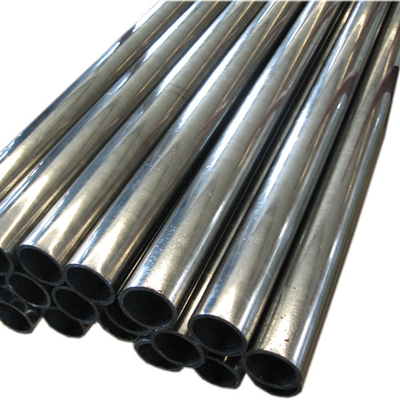

Product Name: Cold Rolled Precision Seamless Steel Pipe
Material:Carbon&Alloy
Outer Diameter: 16-219mm
Wall Thickness: 2-10mm
Grade:EN10305,DIN2391
Precision pipe is a high-precision, high brightness seamless steel pipe produced by cold drawing or cold rolling. Its inner and outer diameters can be accurate to within 0.2mm, while ensuring bending and torsional strength, it is light in weight, so it is widely used in the manufacture of precision mechanical parts and engineering structures.
The precision steel pipe has high dimensional accuracy and high surface finish, and there is no oxide film on the inner and outer surfaces of the steel pipe after heat treatment. deal with.
Delivery Conditions
| Deviation level | Standardized Outer Diameter Tolerance |
| D1 | ±1.5%. Minimum±0.75 mm |
| D2 | ±1.0%. Minimum±0.50 mm |
| D3 | ±0.75%. Minimum±0.30 mm |
| D4 | ±0.50%. Minimum±0.10 mm |
Delivery Status
| BKS(+SR) | After the final cold drawing process there is a stress relieve heat treatment in a controlled atmosphere. |
| NBK(+N) | NBK(+N): After the final cold drawing operation the tubes are normalized in a controlled atmosphere. |
| GBK(+A) | GBK(+A): After the final cold drawing process the tubes are annealed in a controlled atmosphere. |
| BK(+C) | BK(+C): No heat treatment after the final cold drawig process. |
| BKW(+LC) | BKW(+LC): After the final heat treatment there is a suitable drawing pass |
Production Process
Tube blank - Inspection - Peeling - Inspection - Heating - Perforation - Pickling and Passivation - Grinding - Lubrication and Air Drying - Cold Rolling - Degreasing - Cutting head - Inspection - Marking - -Product Packaging
Our Company
Shandong Huiyuan Metal Material Co., Ltd. is located in Liaocheng Economic and Technological Development Zone, Shandong Province,which is known as "Water City North of the Yangtze".
Hui Yuan is a trading company established based on Liaocheng Development Zone Jinyun Steel Pipe Co., Ltd. The factory has more than ten years of professional production experience .Now we have cold rolled seamless steel pipe 12 production lines and hot rolled seamless steel pipe 1 production line,one more hot rolled seamless steel pipe production line is under construction.
Our main products are listed as follows: Hot Rolled steel pipe, Precision Cold Rolled steel pipe, Cold Drawn steel pipe, alloysteel pipe, bearing steel pipe, spiral pipe, galvanized pipe,Honed tube,special shape steel pipe.etc.
Our products have been exported to Germany, South Korea, Russia, Malaysia, Pakistan, Thailand, India, Ukraine and other countriesand regions. We sincerely welcome friends from all over the world to contact us and establish mutually beneficial business relations.
