Product Details:
|
| Product: | Boiler Steel Tube | Outer Diameter: | 14-426mm |
|---|---|---|---|
| Thickness: | 3-50mm | Section Shape: | Round |
| Alloy Or Not: | Is Alloy | Technique: | Cold Drawn |
| Grade Group: | A53-A369 | Length: | Random Length Or Fixed Length |
| Surface: | Black Painted | Material: | Customize |
| High Light: | High Pressure Boiler Steel Pipe,Boiler Steel Pipe 3mm,50mm high pressure boiler tube |
||

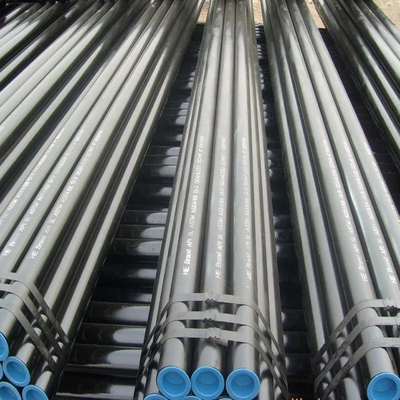

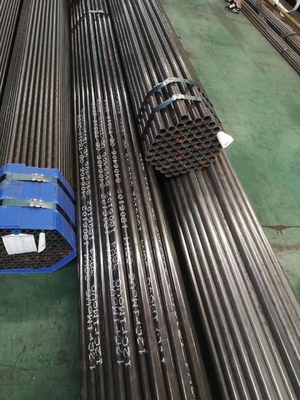

High Pressure Boiler Carbon Steel Pipe Cold Drawn Seamless Steel Pipe Tube For Superheater
Outer Diameter: 14-824mm
Thickness: 3-50mm
Material:20G,20MnG,25MnG,15MoG,20MoG,12CrMoG,15CrMoG,12Cr2MoG,12CrMoVG,12Cr3MoVSiTiB
Standard:DIN17175-79,GB5310
Boiler tube is a type of seamless tube. The manufacturing method is the same as that of seamless pipes, but there are strict requirements on the steel grades used to manufacture steel pipes. According to the temperature of use, it is divided into two types: general boiler tubes and high-pressure boiler tubes.
| Product Name | Boiler Steel Tube |
| Standard | DIN17175-79,GB5310 |
| Material | 20G,20MnG,25MnG,15MoG,20MoG,12CrMoG,15CrMoG,12Cr2MoG,12CrMoVG,12Cr3MoVSiTiB |
| Size | OD:14-426mm,Thickness:3-50mm |
| Surface |
1.Black painted 2.Oil Anti-Rust |
| Technology | Cold Drawn |
| Application | For Manufacture of Pipelines, Vessel, Equipment, Pipe fitting and Steel structure. |
| Package | Standard export sea-worthy packing or customized. |
| Delivery Time | 20-35Days |
| Sample | We could offer the sample for free charge but do not pay the cost of freight. |
| Trade terms | FOB, CFR, CIF, EXW, etc. |
Classification according to Steel Grade
(1) High Quality Carbon Structural Steel Grades 20G, 20MnG, and 25MnG.
(2) High Quality Alloy Structural Steel Grades 15MoG, 20MoG, 12CrMoG, 15CrMoG, 12Cr2MoG, 12CrMoVG, 12Cr3MoVSiTiB, etc.
(3) The commonly used 1Cr18Ni9 and 1Cr18Ni11Nb boiler tubes with rust and heat-resistant steels should be subjected to hydrostatic tests, flaring and flattening tests one by one in addition to ensuring chemical composition and mechanical properties. Steel pipes are delivered in heat-treated condition.
Application
General Boiler Pipe Tube:
Manufacture water wall tubes
Boiling water tubes
Superheated Steam Tubes
Superheated steam tubes for Locomotive Boilers
Large and small smoke tubes and arch brick tubes
High Pressure Boiler Tube:
Manufacture superheater tube
Reheater Tubes
Gas Guide Tubes
Main Steam Tubes
