Product Details:
|
| Name: | Seamless Steel Pipe | Material: | ASTM A53 A106 GR.B |
|---|---|---|---|
| Thickness: | 2-20mm | OD: | 12-120mm |
| Surface: | Bright | Payment: | T/T,LC |
| Length: | 3-6.6m | Tolerance: | ±5% |
| Keyword: | Precision Steel Pipe | Technology: | Cold Rolled |
| High Light: | Carbon Steel a 106 gr b pipe,a 106 gr b pipe ASTM A53,Seamless a106 gr b pipe |
||
Outer Diameter: 12-120 mm
Thickness: 2 - 20mm
Grade: ASTM A53 A106

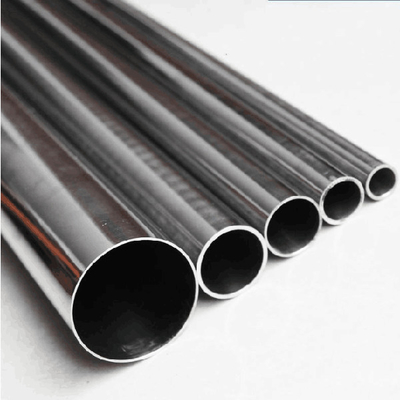

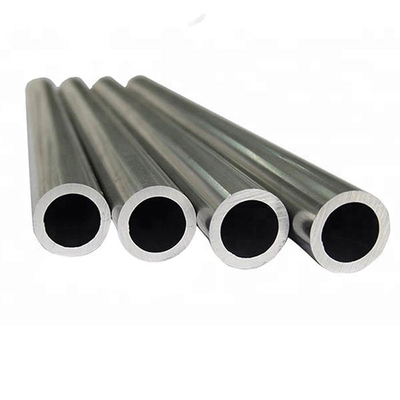

Cold Rolled Precision Seamless Steel Pipe is a high-precision steel pipe material. The main categories are: precision seamless steel pipe, precision hydraulic seamless steel pipe, cold-drawn precision seamless steel pipe, cold-rolled precision seamless steel pipe, high-precision seamless steel pipe, precision bright seamless steel pipe.
| Product Name | Cold Rolled Precision Seamless Steel Pipe | |
| Size | O.D | 12-120mm |
| W.T | 2-20mm | |
| Length | 1-6.6m , Customized | |
| Standard | AISI,ASTM,GB,DIN,BS,JIS | |
| Color | Oil, Bright | |
| Inspection | X-ray Inspection, Manual Ultrasopic Inspection,Surface Inspection,Hydraulic testing | |
| Technique | Cold Rolled | |
| Section Shape | Round | |
| Main Market | Southeast Asia, Middle East, Australia,USA,South America,Africa | |
| Productivity | 5000 Tons/Month | |
| Packing | Standard Bundle Package Beveled End or As per Request | |
| Surface Treatment | Black Painted, PE Coated, Galvanized or Customized all available | |
| Date of Delivery | According to The Specifications And the Quantities Of Each Contract,Time Start To Begin When We confirm the Date or L/C | |
| Method Of Delivery | FOB,CIF,CFR | |
| Remarks | 1.Payment Terms T/T, L/C,West Union | |
| 2.Trade Term:FOB/CFR/CIF , discussible | ||
| 3.Minimum Quantity of Order: 2 Tons | ||
| 4.Delivery Time:7-15 days after receipt of deposit | ||
Product Features
Main features: There is no oxide layer on the inner and outer walls of the steel pipe, no leakage under high pressure, high precision, high finish, no deformation after cold bending, no cracks in flaring and flattening.
Application
Main uses: used in hydraulic system piping, automobile manufacturing piping, military industry, construction machinery, railway locomotives, aerospace, ships, injection molding machines, die-casting machines, machine tools, diesel engines, petrochemicals, power plants, boiler equipment and other industries .
Packing & Delivery
1. Packing: Seamless Steel Pipe will packing in bundles/in bulk/in plastic packing.
2. Trade terms:FOB/CFR/CIF
3. Shipping port: Xingang Tianjin
4. Shipment:
1) Small diameter: Weight >Measurement
a. Length: ≤5.8m, loaded in 20FT Container, Max 27-28tons
b. Length: ≤11.8m, loaded in 40 FT Container, Max 27-28tons
c. Length: ≥12m, shipped by bulk vessel. FILO terms
2) Big dimater: Weight a. Size of 20 FT Container(inside :5898*2352*2350mm)(12024*2352*2395mm)
5.Delivery time: Normal size: 7days send from warehouse directly. Special size: 25-30days custom made for you.
Production Process
Different processing methods and corresponding auxiliary procedures are selected according to the processing performance of the metal, the size of the pipe, the quality requirements, and the investment and benefits. The basic processes of cold-rolled and cold-drawn pipes are:
(1) pipe material supply, the pipe materials used are hot-rolled finished pipes or semi-finished pipes, extruded pipes and welded pipes.
(2) pipe material preparation, including inspection, bundling, acid Washing, cleaning, rinsing, neutralizing, drying, lubricating, etc.
(3) Cold working (cold rolling or cold drawing);
(4) Finishing of finished products includes heat treatment of finished products, straightening, sampling, cutting heads and tails, inspection ( Manual inspection and various flaw detection), hydraulic test, oiling, packaging, storage, etc. Different products have different finishing contents.
