Reidbar Steel Couplers Threaded Rebar Connector 12mm

Large Image : Reidbar Steel Couplers Threaded Rebar Connector 12mm

Product Details:

Place of Origin:	China
Brand Name:	NO
Certification:	NO
Model Number:	1045 s45

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pieces
Price:	0.23~0.60 pieces
Packaging Details:	standatd packing
Delivery Time:	20days
Payment Terms:	L/C, T/T
Supply Ability:	100000 pieces per month

Contact Now

Reidbar Steel Couplers Threaded Rebar Connector 12mm

Description

Product Name:	Straight Thread Couplers Splice Joint Sleeve	Material:	45# Carbon Steel
Usage:	Concrete Construction Support	Technique:	Cold Rolled Hot Rolled
Payment Term:	30%TT Advance + 70% Balance	Rebar Diameter:	12mm-50mm
Model Number:	14MM-40MM	Style:	Parallel Thread
Design Style:	Industrial	Model:	Ordinary Type Caliber Changed Type
High Light:	Steel Couplers Threaded Rebar Connector , Parallel thread Steel Couplers , 12mm Steel Couplers

Reidbar couplers threaded rebar coupler bar connector manufacturers

Production process

Product name:	Rebar Connection Extension Straight Thread Couplers Splice joint Sleeve
Project Solution Capability:	Total solution for projects
Fit For Rebar Diameter	12mm-50mm
Market:	South&north America/Europe/ Asia/ Australia/Africa and etc.
Application:	metal frame, profiled bar, wall mounting, sole plate, bracket, machines, beam, angle iron, track etc
Trade Term:	FOB/CIF/CFR/CNF/EXW/DDU/DDP
Our advantage:	One-stop shopping; High quality; Competitive price; Timely delivery; Technical support;
Customized	OEM/ ODM
MOQ	1000PCS
Payment	T/T, etc
Test Equipment	Caliper, Go&No-go gauge, Tensile test machine, Hardness tester, Salt spraying tester, H.D.G thickness tester

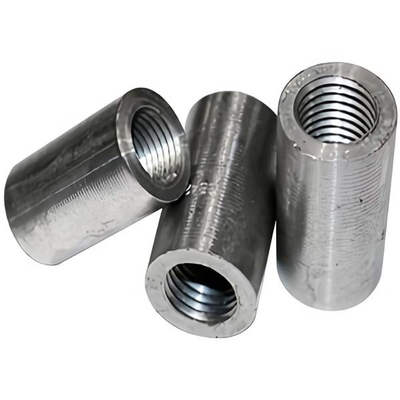

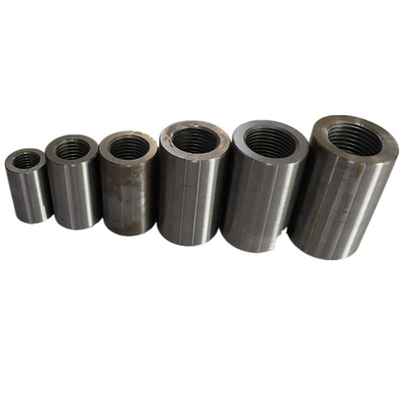

Parallel Thread Coupler

HRB500, 45# Carbon Steel as raw material and Round Bar Cutting, Tensile Strength≥630MPa

Model	Specification		N. Weight (kg)	Thread Pitch	Thread Angle	Packing (pcs/bag)
Model	O. D.	Length	N. Weight (kg)	Thread Pitch	Thread Angle	Packing (pcs/bag)
Φ16	Φ24.0	43	0.0936	2.5mm	75°/ 60°	18
Φ18	Φ27.0	47	0.1286	2.5mm	75°/ 60°	13
Φ20	Φ31.0	52	0.1938	2.5mm	75°/ 60°	10
Φ22	Φ33.0	57	0.2296	2.5mm	75°/ 60°	90
Φ25	Φ37.0	63	0.3106	3.0mm	75°/ 60°	70
Φ28	Φ41.0	67	0.4024	3.0mm	75°/ 60°	50
Φ32	Φ47.0	77	0.5979	3.0mm	75°/ 60°	35
Φ36	Φ54.0	85	0.8854	3.0mm	75°/ 60°	25
Φ40	Φ59.0	95	1.2700	3.0mm	75°/ 60°	20

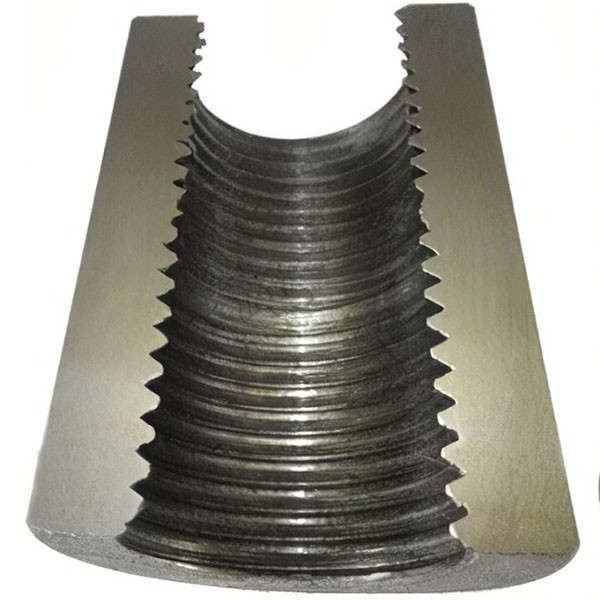

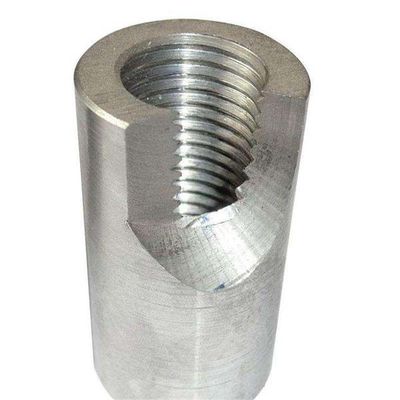

Detailed Images

Main Features:

1.Use solid 45# carbon steel as raw material and Round Bar Cutting
2. High Tensile & yield strength≥630MPa , reach JGJ107, ACI318, BS8110, DIN1045 and UBC1997 etc.
3. Easy operation & environmentally friendly.
4. Could be used in the every orientation connection of reinforcing bars with same or different Diameter.
5. Good low temperature resistance, and could pass the -40 degree low temperature

Reidbar Steel Couplers Threaded Rebar Connector 12mm 3

Reidbar Steel Couplers Threaded Rebar Connector 12mm 4
