Product Details:
|
| Proudanct Name: | ASTM106 GrB Hot Rolled Seamless Carbon Steel Pipe Tubing 89mm | Steel Grade: | GB JIS ASTM BS DIN |
|---|---|---|---|
| Surface: | Painting | Delivery Time: | 22-30 Days |
| Length: | 12M 6m | Grade: | ASTM106GrB |
| Alloy Or Not:: | Non-Alloy | Processing Service: | Welding Punching Cutting |
| Technique: | Hot Rolled | Shape: | Round Shape |
| High Light: | Seamless 4130 chromoly pipe,4130 chromoly pipe 4140,ASTM A335 4130 steel pipe |
||

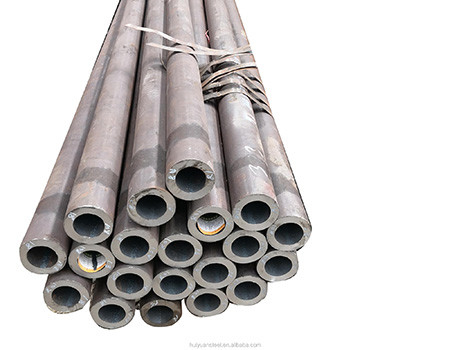

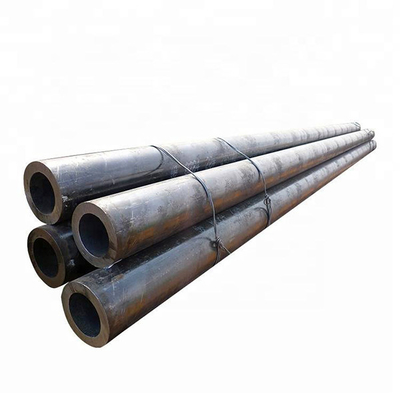

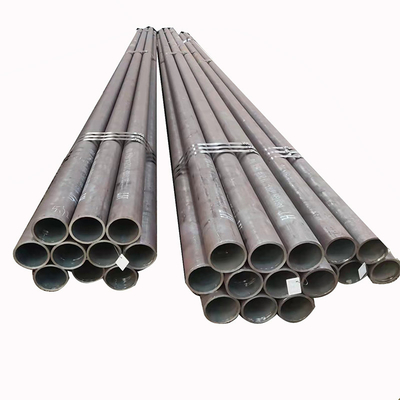

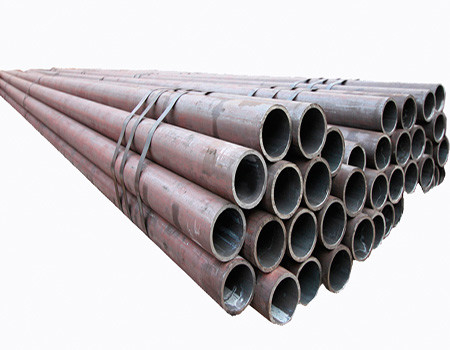

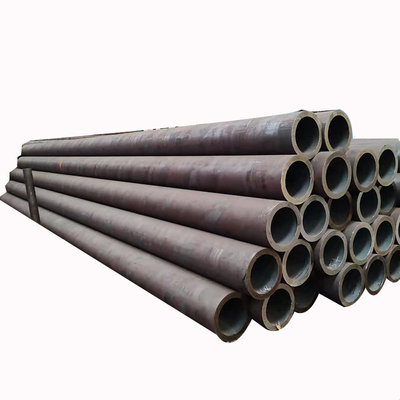

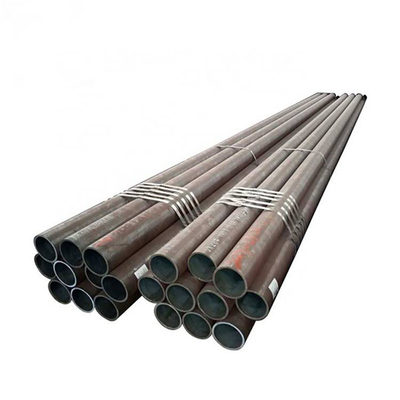

Hot-rolled seamless steel pipe is a large category of seamless steel pipe, which is divided according to the production method. Hot rolling is relative to cold rolling, cold rolling is carried out rolling at room temperature, and hot rolling is carried out rolling at the crystallization temperature.
A seamless steel pipe is a circular pipe having a hollow section and no seams around it. The seamless steel pipe is made of carbon steel, alloy steel, stainless steel ingot or solid tube blank, and then is made by hot rolling, cold rolling or cold drawing
Seamless steel is stronger than welded pipes, making it more expensive because of the higher production cost. On the other hand, welded steel pipes are easier to manufacture due to the cheaper cost of production and raw material availability.
Performance and Usage. Seamless steel pipe has better pressure capacity, strength is higher than ERW welded steel pipe. So it is widely applied in high pressure equipment, and thermal, boiler industries. Generally the welding seam of the welded steel pipe is the weak point, the quality affect overall performance.
Slotted steel pipes and seamless steel pipes are divided according to the processing form. The seamed steel pipes are generally welded. The seamless steel pipes are cold drawn and hot-rolled. The carbon steel pipes are in terms of materials, and the galvanized pipes are welded pipes.
| proudanct name | ASTM106 GrB hot rolled seamless carbon steel pipe tubing 89mm |
| Steel Grade | GB JIS ASTM BS DIN |
| Surface | Painting |
| Delivery Time | 22-30 days |
| Length | 12M 6m |
| Grade | ASTM106GrB |
| Alloy Or Not: | Non-Alloy |
| Processing Service | Welding Punching Cutting |
| Technique | Hot Rolled |
| Shape | Round Shape |
Application
ASTM Specification A106 covers seamless carbon steel nominal wall pipe for high-temperature service, suitable for bending, flanging and similar forming operations. NPS 1-1/2 and under may be either hot finished or cold drawn.
S/A 106 Spec Sheet A106 Pipe Specifications A/SA106 NPS 1/4"- 30" Schedules 10 through 160, STD, XH and XXH Scope ASTM A106 Seamless Pressure Pipe (also known as ASME SA106 pipe) covers seamless carbon steel nominal wall pipe for hightemperature service. Suitable for bending, flanging and similar forming operations. NPS 1-1/2" and under may be either hot finished or cold drawn. NPS 2" and larger shall be hot finished unless otherwise specified. Process Killed steel, with primary melting process being open-hearth, basic-oxygen, or electric-furnace, possibly combined with separate degassing or refining. Steel cast in ingots or strand cast is permissible. Hot-finished pipe need not be heat treated. Cold-drawn pipe shall be heat treated after the final cold draw pass. Chemical Requirements
Grade A Grade B Grade C Carbon max. % 0.25 0.30 0.35 *Manganese % 0.27 to 0.93 *0.29 to 1.06 0.29 to 1.06 Phosphorous, max. % 0.035 0.035 0.035 Sulfur, max. % 0.035 0.035 0.035 Silicon, min.% 0.10 0.10 0.10 Chrome, max. % 0.40 0.40 0.40 Copper, max. % 0.40 0.40 0.40 Molybdenum, max. % 0.15 0.15 0.15 Nickel, max. % 0.40 0.40 0.40 Vanadium, min.% 0.08 0.08 0.08 Total of Cr, Cu, Mo, Ni, and V shall not exceed 1%
Q: How about the delivery terms?
A: 1. Payment: T/T, 30% deposit in advance and balance before delivery.
2. Min. Order Quantity:3TON or as required.
3. Transportation: By express (DHL,TNT,),air,sea,and train.
Q: Do you accept sample order?
A: Yes sure, please contact us for details.
Q: How about your after-sales service?
A: As a professional steel exporter, we offer promote technology support for all problems and questions.
Besides, we accept goods return or replace for quality problem.
Q: How does your company control the quality?
A: Quality first. In order to guarantee high quality for our products,
Modern always makes a serious inspection for all products and raw materials in strict procedure.
Why choose us?
1. We're Gold Supplier. Evaluated by Alibaba.
2. More than 9 years exprience, especially in cold rolled steel pipe industrty.
3. Export to Korea, Pakistan, Brazil, Russia, India, Vietnam and other countries
4. Work with many famous brands, such as Tisco, Baosteel.
5. Quick response to your inquiry.
Timely communication and feedback.
6. Samples could be provided.
7. Excellent production technology.
Different shapes of products can be cut and provided.
8. Strong production capacity. Fast delivery capacity. Quick supply capacity.
9. Strict Quality Control and Inspection in every process.
Our Advantages
1. We are a specialized manufacturer. Competitive price and quality from our own factory .
2. Best service with 24 hour`s reply .
3. Flexible payment with T/T,L/C , etc .
4. Smooth production ability(1000tons/month).
5. Quick delivery and standard exporting package .
Contact Person: Claudia zhao
Tel: 8615006378386
